Tutorial 6 — Temperature annealing & quenching¶

Goal: drive a simulation through a temperature protocol instead of a single constant temperature — hold the protein hot enough to unfold, then bring it back down to ref_t to watch it refold. You will learn both supported protocols (a delta T-jump quench and a linear cooling ramp), every config key that controls them, how the run splits into two phases writing two separate trajectories, and how the schedule interacts with restarts.

Time: two short runs, ~2–3 seconds each.

Prerequisite: do Tutorial 1 first — this reuses the same single-domain protein (P0CX28) and its calibrated domain.yaml.

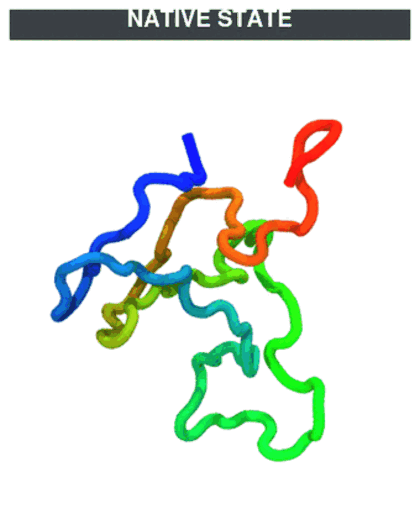

unfold then refold trajectory

Temperature protocol (unfold → refold). The quench phase at 600 K unfolds the chain (native contacts break), then the T-jump back to 300 K lets it refold. CA trace coloured N→C (blue→red).

The GIF stitches the quench trajectory (traj_quench.dcd) ahead of the production trajectory (traj.dcd); regenerate with python ../_viz/render_cg.py --psf traj_jump/traj.psf --dcd traj_jump/process.dcd --out img --hero 0 (build process.dcd by joining the two DCDs — see the visualization note).

The idea: a temperature protocol in two phases¶

An ordinary run (Tutorials 1–4) is equilibrium: one Langevin thermostat held at ref_t for all md_steps. Annealing (anneal = yes) splits the run into two phases, each writing its own trajectory and log:

Phase	What it does	Steps	Output files
Quench	Hold at `t_high` (and, for a linear ramp, cool down to `ref_t`). The protein unfolds here.	`anneal_steps` (+ `anneal_ramp_steps` for linear)	`<outname>_quench.dcd`, `<outname>_quench.log`
Production	Run at `ref_t`. The protein refolds and you collect the equilibrium ensemble.	`md_steps`	`<outname>.dcd`, `<outname>.log`

Two consequences worth internalizing:

anneal_steps is separate from md_steps. The grand total is quench_steps + md_steps (where quench_steps = anneal_steps for a jump, or anneal_steps + anneal_ramp_steps for a linear ramp). md_steps is now only the production length.
The hot part never contaminates your production trajectory. Because the quench writes _quench.* and production writes the normal .*, your traj.dcd contains only the ref_t ensemble — exactly what you want for analysis. ref_t is always the low / refold temperature; there is no separate t_low key.

The quench is treated as a one-time preparation step: it writes no checkpoint, and the step/time clock is reset to zero when production begins, so the production run looks exactly like an ordinary standalone run (its Step column starts at 0). Positions and velocities carry over, so a jump is simply the hot structure suddenly thermostatted at ref_t. The single checkpoint <outname>.chk therefore holds only production state, which keeps restarts clean (see below).

When the run starts, the runner prints both phases:

Temperature protocol [quench -> _quench.*]: 600 K x 3000
Temperature protocol [production -> .*]:    300 K x 3000  (grand total 6000 steps)

Two ways down: jump vs. linear¶

anneal_ramp selects how the temperature goes from t_high to ref_t:

`anneal_ramp`	What happens	Use it for
`jump` (default)	The quench phase is purely the hold at `t_high`; the thermostat then drops to `ref_t` instantaneously at the phase boundary (a delta T-jump that lands exactly between the `_quench` and production files). Folding happens at a single, well-defined temperature.	Folding kinetics / mechanism. Clean folding times and pathways because rates aren’t convolved with a changing T. Mirrors an experimental T-jump.
`linear`	The quench phase holds at `t_high`, then cools gradually to `ref_t` over `anneal_ramp_steps` in `anneal_ramp_increments` discrete steps. Production then runs at `ref_t`.	Refolding yield / structure recovery. Slow cooling avoids kinetic traps (classic simulated annealing toward the native minimum). Not for clean kinetics — cooling and folding overlap.

Recommendation: for studying how (and how fast) the protein refolds, use the delta jump. Reach for linear only when the goal is “recover the native state at all,” not “measure the folding rate.”

All annealing options¶

All keys live in the single [OPTIONS] section, alongside the usual settings. They are read only when anneal = yes.

Option	Type	Default	Description
`anneal`	bool	`no`	Turn the annealing protocol on. `no` → ordinary constant-`ref_t` equilibrium (one phase, one file set).
`t_high`	float [K]	— (required when `anneal = yes`)	High / unfolding temperature held during the quench phase.
`anneal_steps`	int (`> 0`)	`0`	Quench-phase steps held at `t_high`. Separate from `md_steps`. Must be many thermal relaxation times (`~1/tau_t`) and long enough to unfold.
`anneal_ramp`	str	`jump`	`jump` (instantaneous drop to `ref_t` at the phase boundary) or `linear` (gradual cool-down inside the quench phase).
`anneal_ramp_steps`	int	`0`	`linear` only. Quench-phase steps spent ramping `t_high → ref_t` (added on top of `anneal_steps`).
`anneal_ramp_increments`	int	`20`	`linear` only. Number of discrete temperature steps in the ramp; the last increment lands exactly on `ref_t`.

Reused, not new: ref_t (the low temperature), tau_t (thermostat coupling), md_steps (now the production length only), nstxout / nstlog / nstchk (apply to both phases’ files).

Grand total of integration steps:

total = anneal_steps + (anneal_ramp_steps if linear else 0) + md_steps
        \_________________ quench phase ________________/   \ production /

⚠️ The most important physical knob: hold length vs. thermostat coupling¶

A Langevin thermostat doesn’t change the temperature instantly even on a jump: the kinetic energy relaxes toward the new setpoint over roughly 1 / tau_t. So the setpoint jumps, but the system takes ~1/tau_t to follow.

That has two consequences you must respect:

anneal_steps must be ≫ the relaxation time (1/tau_t, converted to steps via dt), or the system never actually reaches t_high and won’t fully unfold.
The hold must be long enough to lose native memory — verify the protein genuinely unfolds during the quench (fraction of native contacts Q → 0, Rg plateaus, in traj_quench.dcd). Otherwise refolding is biased by leftover native structure.

These tutorial configs cheat for speed: they use tau_t = 1.0 ps⁻¹ (relaxation ≈ 1 ps ≈ 67 steps at dt = 0.015), so a 3000-step hold easily reaches 600 K. Production runs typically use tau_t ≈ 0.05 ps⁻¹ (relaxation ≈ 20 ps), so you would need an anneal_steps of many × 20 ps — e.g. a 3 ns hold — for the same effect. Scale the hold with your friction, not with the demo numbers.

Files in this folder¶

File	Role
`P0CX28_clean.pdb`	Input structure (same single domain as Tutorial 1).
`domain.yaml`	Calibrated contact `nscale` — folded at 300 K, unfolds at 600 K (syntax: Domain definition file).
`md.ini`	Delta T-jump quench (`anneal_ramp = jump`).
`md_linear.ini`	Linear cooling ramp (`anneal_ramp = linear`).
`run_simulation.py`	The runner shim (`= python -m topo.mdrun`).

Step-by-step¶

1. Run the delta T-jump quench¶

python run_simulation.py -f md.ini

The console echoes both phases and the grand total:

Temperature protocol [quench -> _quench.*]: 600 K x 3000
Temperature protocol [production -> .*]:    300 K x 3000  (grand total 6000 steps)

Outputs land in traj_jump/ and you get two trajectories/logs: traj_quench.dcd / traj_quench.log (the 600 K hold) and traj.dcd / traj.log (the 300 K production), plus one shared traj.chk.

Check that each file holds the temperature you expect:

import numpy as np
from topo.reporter.topo_reporter import readOpenMMReporterFile
q = readOpenMMReporterFile("traj_jump/traj_quench.log")
p = readOpenMMReporterFile("traj_jump/traj.log")
print("quench     mean T:", round(np.array(q["Temperature (K)"]).mean()))   # ~600 K
print("production mean T:", round(np.array(p["Temperature (K)"]).mean()))   # ~300 K
print("production steps :", int(np.array(p["Step"]).min()), "..",
                            int(np.array(p["Step"]).max()))                 # 100 .. 3000 (reset to 0)

(Instantaneous CG temperatures are noisy for a small chain — judge the mean of each file, not single frames.)

2. Run the linear cooling ramp¶

python run_simulation.py -f md_linear.ini

Now the quench schedule has a staircase of cooling stages (outputs in traj_linear/); production is still a flat ref_t run:

Temperature protocol [quench -> _quench.*]: 600 K x 1500 -> 570 K x 300 -> ... -> 300 K x 300
Temperature protocol [production -> .*]:    300 K x 3000  (grand total 7500 steps)

Plot Temperature (K) vs Step from traj_linear/traj_quench.log and you’ll see the staircase descend from 600 K to 300 K; traj_linear/traj.log then sits flat at 300 K.

3. (Optional) Confirm unfolding/refolding¶

For a real study you’d track the fraction of native contacts Q with topo.analysis (see Tutorial 5’s machinery): Q should fall toward 0 across traj_quench.dcd (the hot hold) and climb back toward 1 across traj.dcd (the ref_t production). With the tiny demo step counts here this is only illustrative — increase anneal_steps and md_steps for a meaningful curve.

Annealing + restart¶

Restart (Tutorial 3) applies to the production phase only — the quench is a short, one-time preparation that is never restarted. Because the checkpoint holds production state and the production clock starts at 0, a restart behaves exactly like restarting a normal run:

restart = yes skips the quench entirely and resumes production from <outname>.chk, appending to the production .dcd / .log. The _quench.* files from the original run are left untouched.
md_steps is the production total; the runner runs md_steps − steps_done more production steps. To extend production, raise md_steps.

Keep output_dir / outname / the protocol keys identical between stages. (If a run is killed during the quench, no checkpoint exists yet, so restart = yes simply falls back to a fresh run and redoes the short quench — which is what you want.)

Key takeaways¶

Annealing is a two-phase protocol: a quench (_quench.*) then production (.*). Same runner, selected by anneal.
anneal_steps is separate from md_steps; the grand total is their sum (plus the linear ramp). md_steps is production-only.
Two trajectories keep the hot hold out of your production ensemble.
Production resets to step 0 and owns the only checkpoint, so restarting an annealed run is identical to restarting a normal run — the quench is never redone.
ref_t is the low temperature — reused directly, no t_high/t_low bookkeeping.
jump for kinetics, linear for yield.
Match anneal_steps to your tau_t — the hold must be many thermal relaxation times, and long enough to actually unfold.

Visualizing the unfold → refold¶

The two phases write two DCDs. Join them into one trajectory (quench first, then production) so the GIF at the top of this page reads as a single unfold → refold movie:

import mdtraj as md
q = md.load('traj_jump/traj_quench.dcd', top='traj_jump/traj.psf')  # 600 K: unfolds
p = md.load('traj_jump/traj.dcd',        top='traj_jump/traj.psf')  # 300 K: refolds
q.join(p).save_dcd('traj_jump/process.dcd')

then render it:

python ../_viz/render_cg.py --psf traj_jump/traj.psf --dcd traj_jump/process.dcd --out img --hero 0

Try next¶

Sweep t_high (e.g. 500/600/700 K) and check at which temperature the quench actually unfolds the protein (Q → 0 in traj_quench.dcd).
Switch the demo to production-like coupling (tau_t = 0.05) and lengthen anneal_steps accordingly to see the realistic relaxation timescale.
Generate many independent refolding trajectories at once by combining this protocol with multi-copy runs (Tutorial 4): set n_copies > 1 to launch a batch of quenches in a single GPU job.
