Tutorial 7 — Protein synthesis through an analytic exit tunnel¶

This is the structure-based (topo) twin of cosmo’s tutorial 09. The ribosome-based runner (Tutorial 8) builds the ribosome from explicit beads and threads the nascent chain through the coarse-grained exit tunnel. Here the tunnel is modelled analytically instead: a cylindrical bore of radius r along the X-axis drilled through an infinite wall at x_exit (a “hole in an infinite wall”). There are no ribosome beads — the System is the nascent chain only, so it is fast and never jams.

The chain is a folded protein built with topo’s structure-based Gō contacts, so it can fold co-translationally as it extrudes and once it clears the bore.

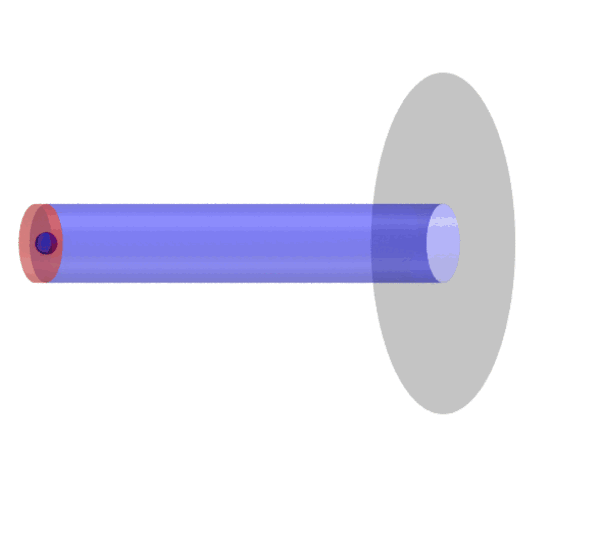

full protein synthesis and ejection through the tunnel

Protein synthesis → ejection. The chain (N→C rainbow beads) grows from the PTC (C-terminus, red) and extrudes N-terminus-first down the transparent blue bore (with the red closed PTC cap and the translucent grey exit-face wall), emerges past the wall, and folds into the ejected protein just outside the tunnel.

The tunnel is a pure force (no beads); the drawn geometry is read from the same cylinder.ini. Regenerate after a run:

python make_movie_cylinder.py -o synth_out -f cylinder.ini          # stitch movie + tunnel
python ../_viz/cylinder_tunnel_tcl.py -f cylinder.ini -o synth_out/tunnel.tcl
# beads (VDW+Licorice) hide sentinel-parked beads cleanly; a zoomed-out view
# (scale<1, bigger beads) shows the whole grow→thread→eject path in one frame.
python ../_viz/render_cg.py --psf synth_out/movie.psf --dcd synth_out/movie.dcd \
       --out img --hero last --no-align --rep beads --bead-radius 2.6 --scale 0.78 \
       --select "name CA and x < 9000" --selupdate --extra-tcl synth_out/tunnel.tcl

(the shipped GIF trims the trajectory to the end of ejection, before the free protein diffuses off-axis — slice movie.dcd to the ejection frames first.)

The cylinder ribosome model (`topo.csp.cylinder`)¶

The analytic tunnel is a different physics of confinement than the explicit-bead ribosome, so it lives in the package as a parallel module to the explicit-bead runner (topo.csp.protocol): topo.csp.cylinder, driven by the topo-cylinder console command. It reuses the package’s tested, unchanged low-level machinery from topo.csp.core (the one-time contact precompute, the build-once-subset length model, the seed / restrain / output path) and adds only the one new force, add_tunnel_cylinder, plus its own nascent-only synthesis loop.

Timing is the same O’Brien codon kinetics as topo-csp — each residue’s MD length comes from its codon dwell time (mrna + scale_factor) via topo.csp.kinetics. The only difference from the explicit protocol is that the cylinder runs a single MD segment per residue (there is no A→P translocation to split into three sub-stages).

The model (forbidden region `S`)¶

   d                              (cytosol: free, any d)
   ^   |##### solid ribosome S #####|
 r |···|············ bore ··········|··············>  allowed past exit
   +---|----------------------------|----------------> x
     x_lo (PTC)                  x_exit
       |##### solid ribosome S #####|
                              ^ infinite exit-face wall (d > r)

A bead is penalised by its penetration depth into S (everything outside the bore up to the exit face, plus the closed PTC end), escaping via whichever face is nearer — the bore wall (radial inward push → keeps the chain extended) or the exit face (+x push → a cytosol bead can re-enter the tunnel only through the bore). The 90° mouth corner is rounded by a fillet (radius rho) so the potential is continuous and the MD is stable. The C-terminus is seeded and position-restrained on the tunnel axis at the PTC (x_lo, 0, 0); new residues are seeded there.

Run¶

cd tutorials/07_translation_cylinder
topo-cylinder -f cylinder.ini          # or: python -m topo.csp.cylinder -f cylinder.ini

All parameters live in cylinder.ini ([OPTIONS] section). The nascent chain is the 106-residue P0CX28, with domain.yaml + the precomputed STRIDE for the contact map, and P0CX28_mrna.txt for the codon kinetics. Tunnel defaults: bore radius 0.9 nm, length 10.0 nm (x_lo=0, x_exit=10), axis on X, mouth fillet 0.2 nm, wall stiffness 8368 kJ/mol/nm². The kinetics keys (mrna, scale_factor, time_stage_1/2, max_steps_per_stage) are the same as the CSP tutorials; the demo caps each residue at 2000 steps (delete the clamps for production).

Post-synthesis: ejection and dissociation¶

Once the chain reaches its final length, two optional post-synthesis free runs continue the same system from the finished structure — the same ejection_steps / dissociation_steps keys as topo-csp. Both phases release the C-terminus restraint, so the completed protein is free to diffuse; the analytic tunnel stays on (bore + closed PTC end + exit wall), so the only way out is +x through the exit. This tests whether the nascent protein diffuses out of the tunnel and folds in the cytosol.

ejection (ejection_steps) — the first free run, written to <outdir>/ejection/.
dissociation (dissociation_steps) — a continued free run seeded from the ejection structure, written to <outdir>/dissociation/.

ejection_steps     = 300_000   # use a LONG run so the protein can clear the tunnel
dissociation_steps = 0         # 0 -> skip

Visualize / validate¶

Use the tutorial’s movie tool — it stitches the per-length trajectories (reusing the shared stitcher in topo.csp.movie) and draws the analytic tunnel (bore tube, closed PTC cap, and the infinite exit-face wall as an annulus whose hole is the bore), reading the geometry from the same cylinder.ini:

python make_movie_cylinder.py -o synth_out -f cylinder.ini
vmd -e synth_out/movie.tcl

You then see the chain thread the (blue, transparent) bore, the red PTC end cap it grows away from, and the grey exit wall it emerges through — then fold once it clears the tunnel. (Plain topo-csp-movie -o synth_out also works — it just omits the tunnel.)
